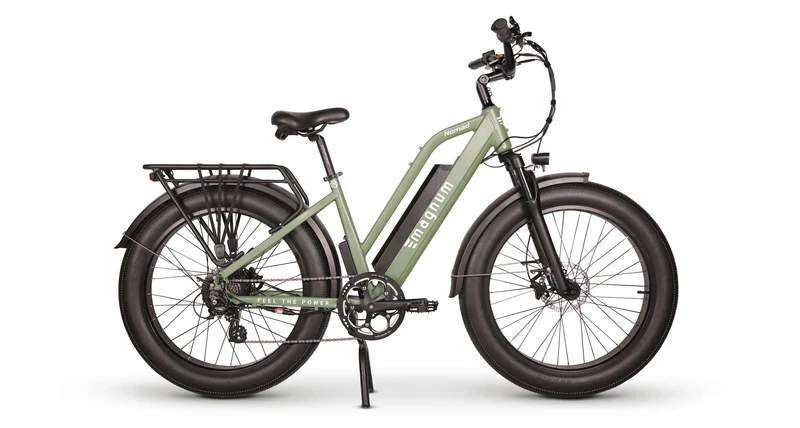

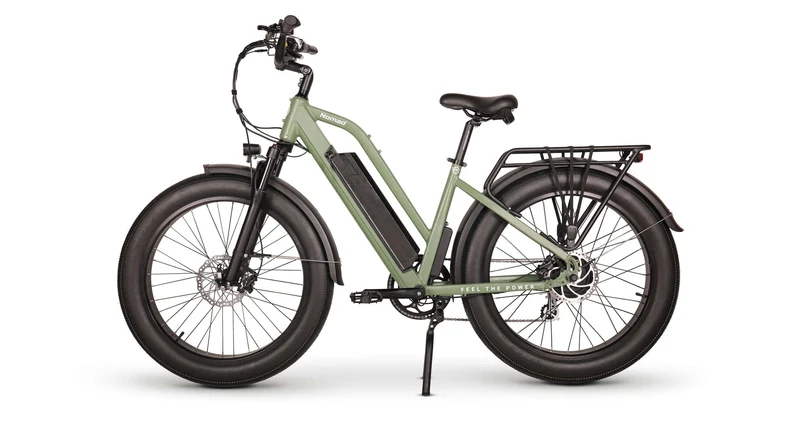

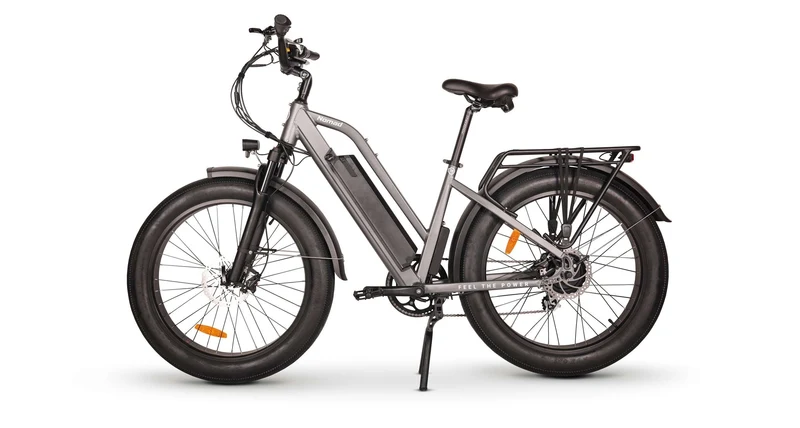

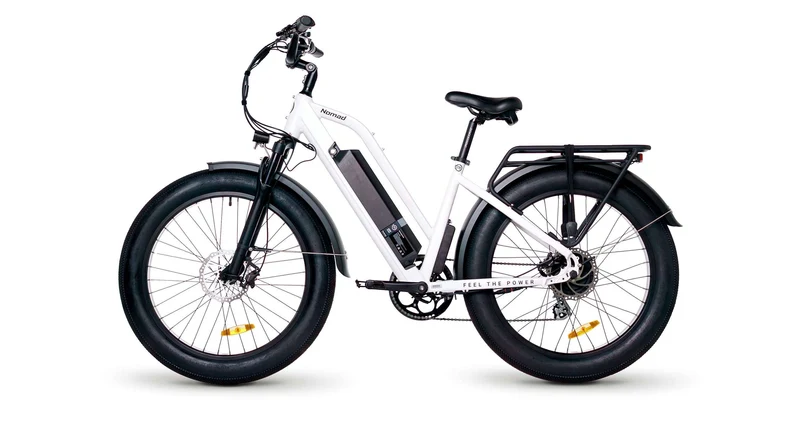

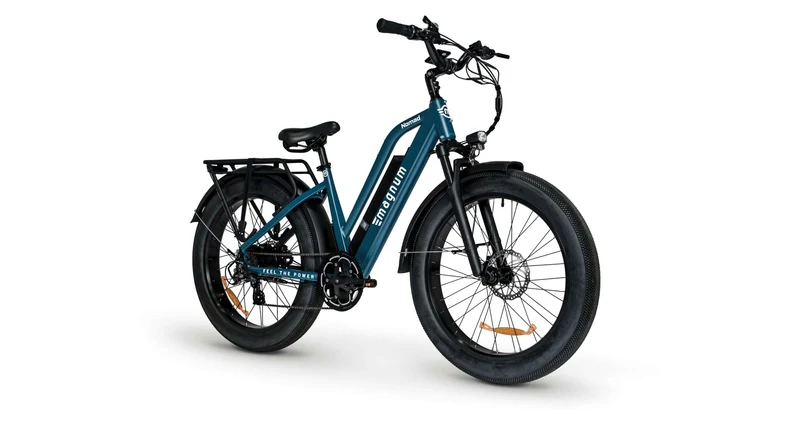

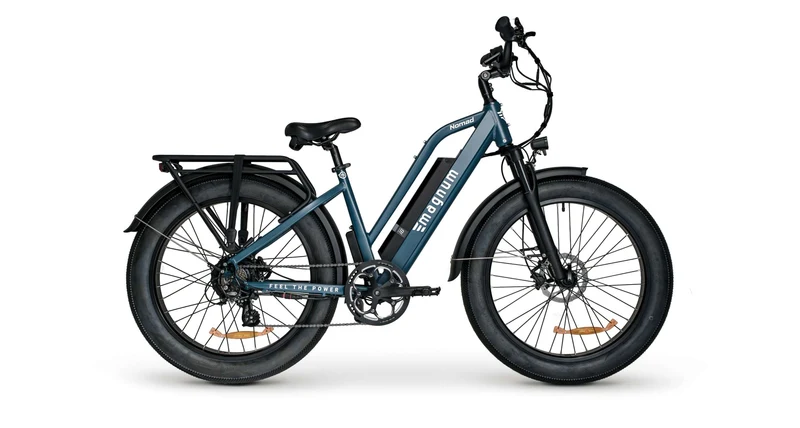

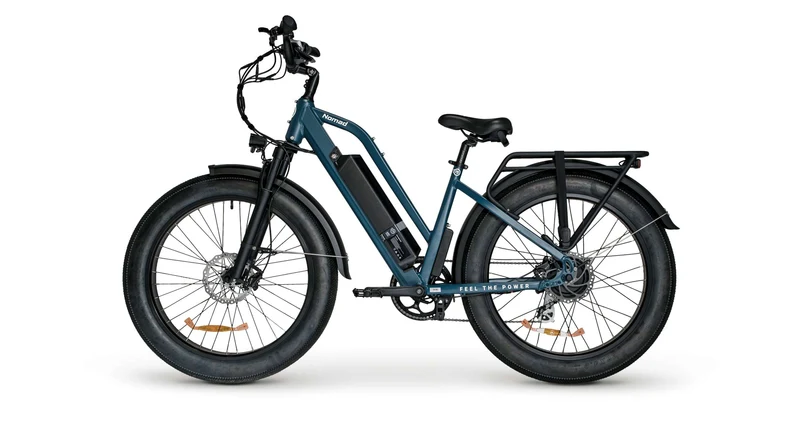

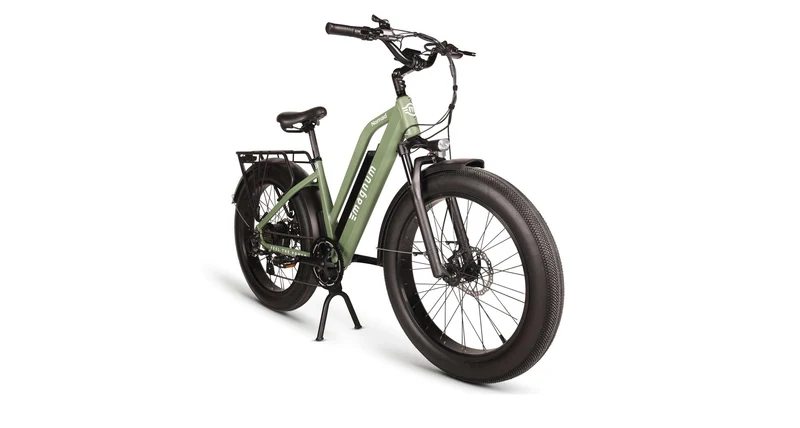

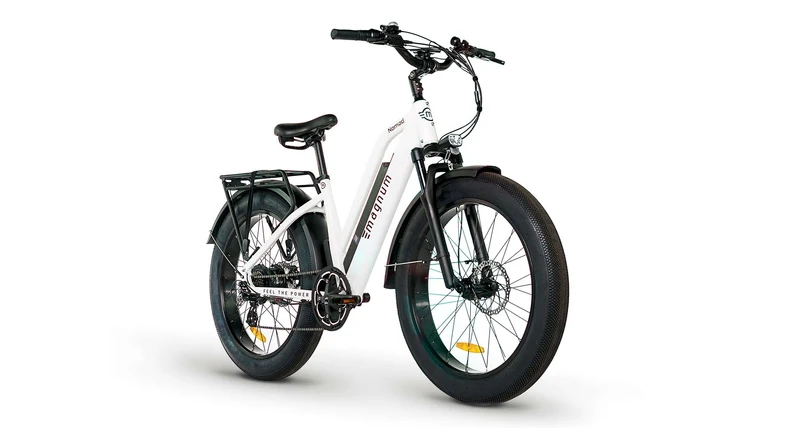

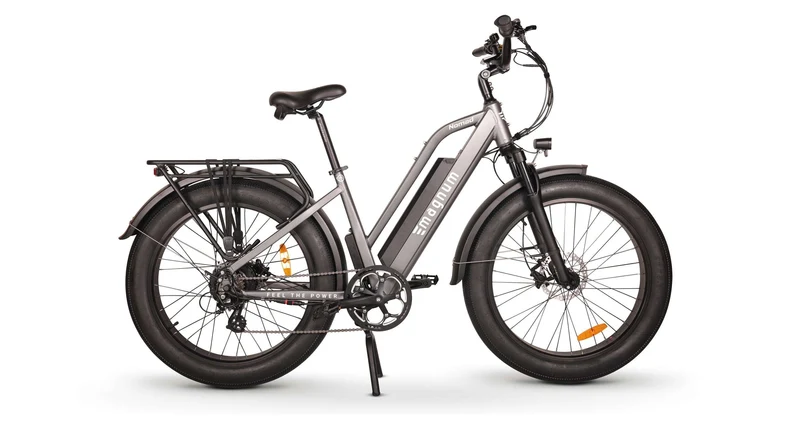

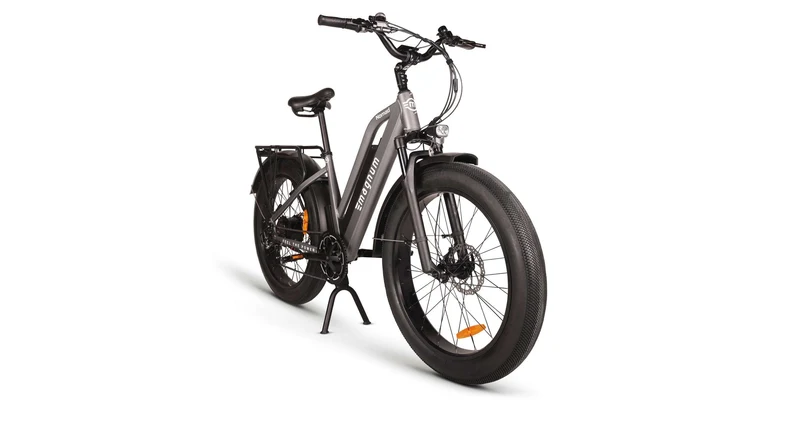

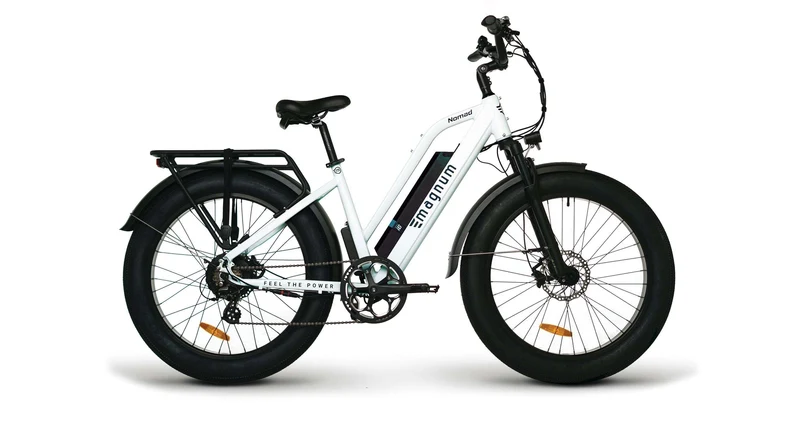

The Magnum Nomad - Top Speed 32 KPH, Range 56-104km

Nomad

New to Magnum’s lineup, The Nomad is a powerful fat tire electric bike with a robust step-through frame that provides excellent stand over clearance for riders of varying heights. The Nomad is built for trail-riding and weekend adventures.

• Top speed: 32 km/hr

USER MANUAL

Features & Specs

Electronic Details

• Motor Type: Bafang Rear Hub

• Motor Output: 48v 750W Nominal

• Battery Voltage / Amp Hours / Watt Hours: 48v / 17.5Ah / 840Wh

• Estimated Charge Time: 8.5 Hrs

• Estimated Min And Max Range: 56-104 Km (Depending On Riding Style, Terrain, Rider Weight and Pedal Assist Level.)
• Display Type: LCD Display

• Display Readouts: Speed, Trip, Trip Time, Time, ODO, Power output, PAS, Battery Level

• Drive Modes: Cadence Sensing Pedal Assist, Twist Throttle

• Top Speed: Up to 45 km/hr With Pedal Assist, 32 km/hr Throttle Only

• Lights: Front and Rear Integrated

Bicycle Details

• Total Weight: 74lbs

• Battery Weight: 9lbs

• Frame Type: Low Step with semi-integrated battery

• Frame Material: Aluminum

• Fork Details: Suspension Fork with Lockout

• Gearing Details: 7 Speed Shimano

• Shifter Details: 7 Speed Shimano

• Cranks: 52T 170mm

• Pedals: Welgo Platform

• Stem / Handlebar: Promax Adjustable

• Brake Details: Hydraulic Disc Brakes

• Grips: Leather Ergo

• Saddle: Comfort

• Seatpost / Seatpost Dimensions: Promax 30.4mm

• Fenders: Front and Rear

• Rims: 26 x 80mm 36h

• Tires: 26″ x 4″

• Wheel Size: 26″ X 4″
